Menu Principal Produtos Serviços Promoções Menu do Utilizador Menu Principal Produtos Serviços. Temperature and humidity sensor defectivege.Brand: Ricoh : Printing Technology: Thermal: Model Connectez le cordon d'alimentation à cet endroit de l'appareil. Temperature and humidity sensor harness disconnected, loose, defective. The thermistor output of the humidity sensor was not within the prescribed range (0.01V to 2.4V).
The thermistor output of the temperature sensor was not within the prescribed range (0.5V to 4.2V). Defective image transfer belt unit or paper transfer unit. High voltage power: Image transfer/ paper transfer bias output error An error signal is detected for 0.2 seconds when charging the separation, image transfer bet or paper transfer roller. High voltage power: Drum/ development bias output error An error signal is detected for 0.2 seconds when charging the drum or development. Toner transport motor error The LOCK signal is not detected for 2 seconds when the transport motor turns on. Damaged insulation around the high-voltage power supply.
This SC is issued if the BICU detects a short in the power pack 10 times at D(ac).ĭamaged insulation on the high-voltage supply cable. Separation power pack output error An interrupt checks the status of the power pack every 20 ms. Defective paper transfer unit contact motor. Paper transfer unit contact error The paper transfer unit contact sensor does not detect the movement of actuator at the sensor while the polygon motor rotates.ĭefective paper transfer unit contact sensor. Image transfer unit error The machine detects the encoder sensor error.ĭefective encoder sensor.

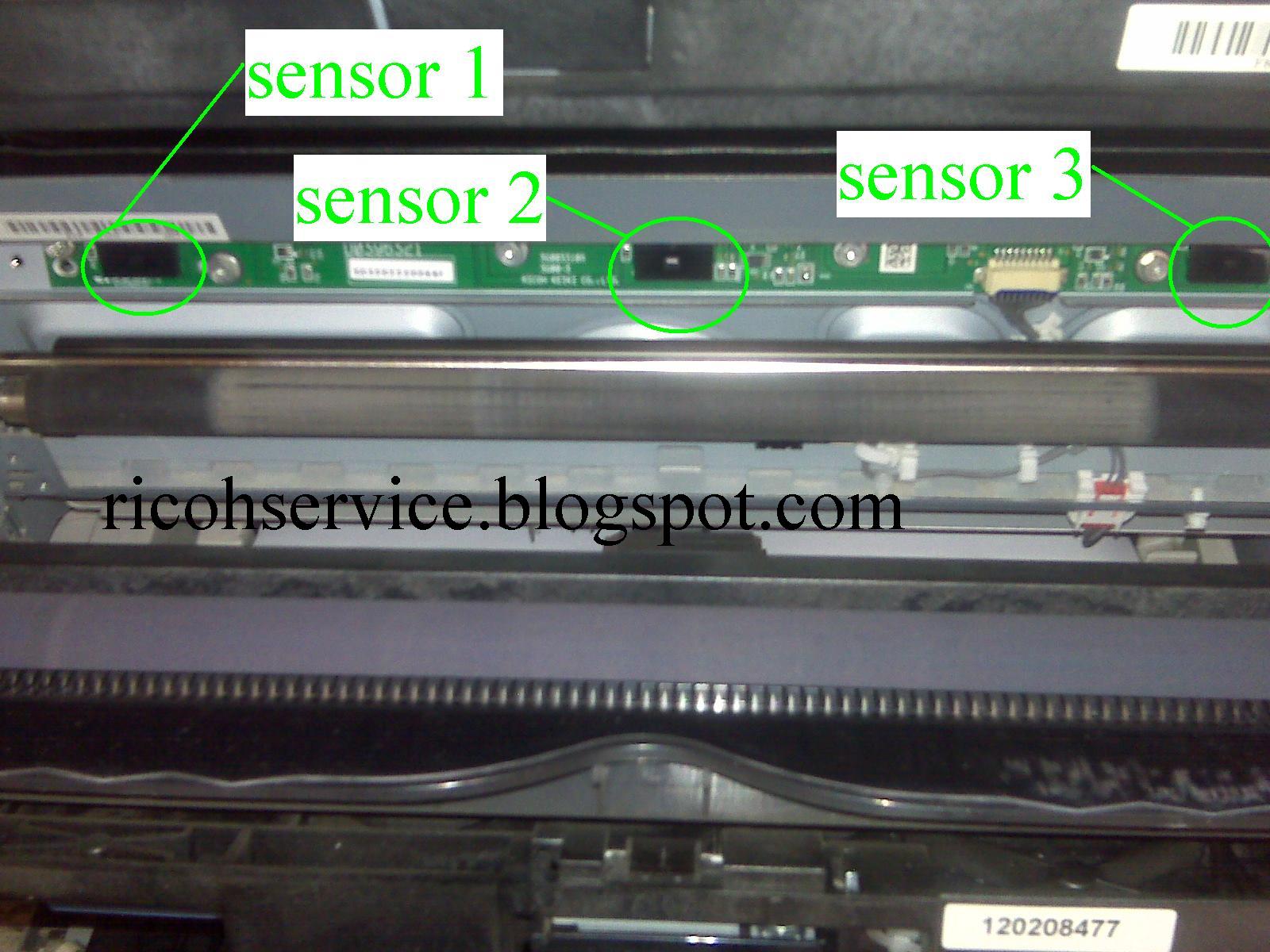

Disconnected connector of image transfer belt contact sensor or motor. Defective image transfer belt contact motor. Image transfer belt contact motor error The image transfer belt contact sensor does not detect the movement of actuator at the sensor while the polygon motor rotates.ĭirty image transfer belt contact sensor. Image transfer unit motor error The motor LOCK signal is not detected for more than two seconds while the motor START signal is on. The Vsg error counter counts “1” when the Vsg detected by ID sensor is more than the value (default: 4.5V) specified with SP3234-005 or less than the value (default: 3.5V) specified with SP SP3234-006.ĭirty or defective ID sensor. ID sensor adjustment error When the Vsg error counter reaches “3”, the machine detects “SC400”.
